So I've completed my epic top case project.  Today was finishing up all the little s***... ugh!

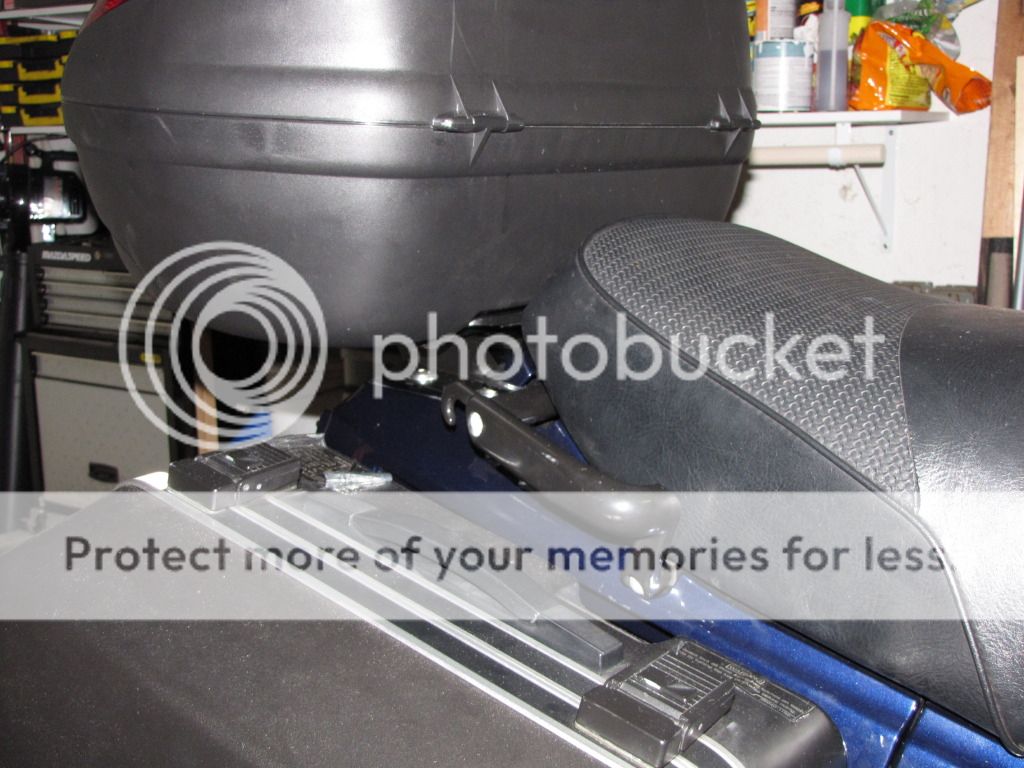

I started this morning, by trying to remove the seat (with the top case on).  The top case was
mounted too far forward, so I had to rip the whole thing apart, drill some new holes to move
the case back about an inch, then painted the mounting rails and steel support plate I made.
Now I can remove the seat with the top case on (kinda important).



Next I wired up the "pigtail" for the top case power.  I reduced 10 wires down to 4, then
drilled a small hole at the bottom front of the case, and ran the 4 wires though the bitty hole.
I chose to solder/shrink wrap all the connections then wire loom everything.  The 4 wires then
ran into a (4) terminal plug.  The end result was a very tidy wiring job.



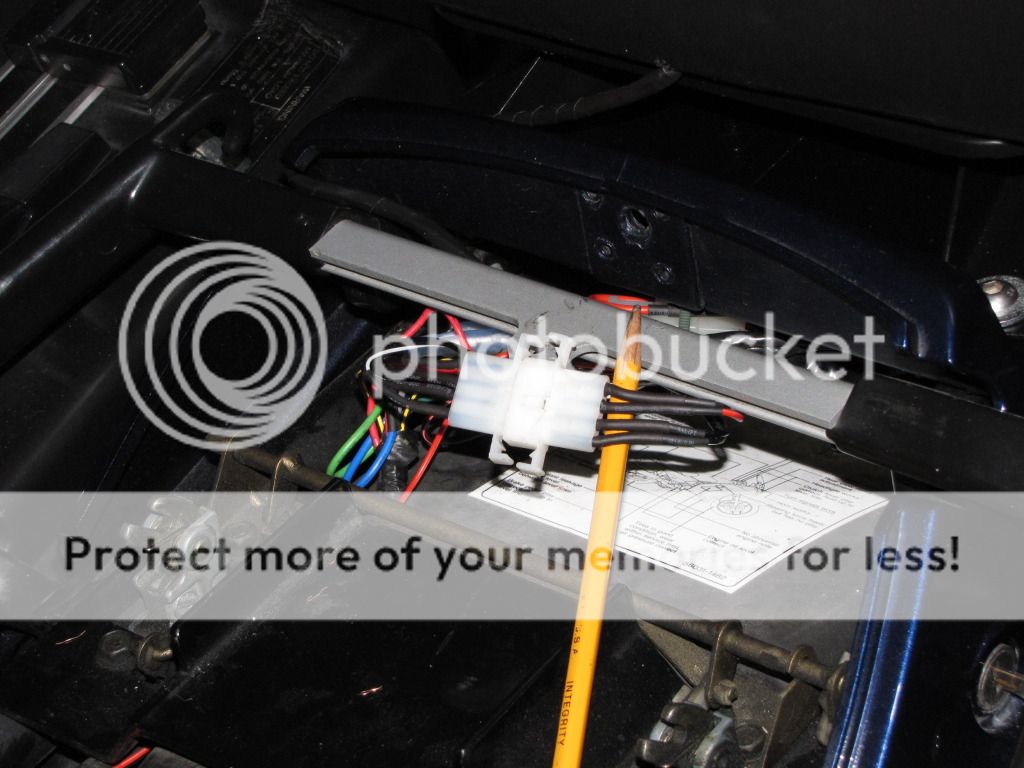

The next phase was wiring the other plug to the running lights/brake lights/full time hot
(For the cargo light) and ground.  Once again.... solder/shrink wrap/tape all the connections.
Unfortunately, this meant tearing the whole back of the bike down, to get adequate room
to work.  The end result was again tidy, and left a 4 terminal plug the top case wire will
plug into.  This was the most time consuming, but worth the extra work to ensure all the
connections were solid and proper.





The wire is hardly noticeable  :great:



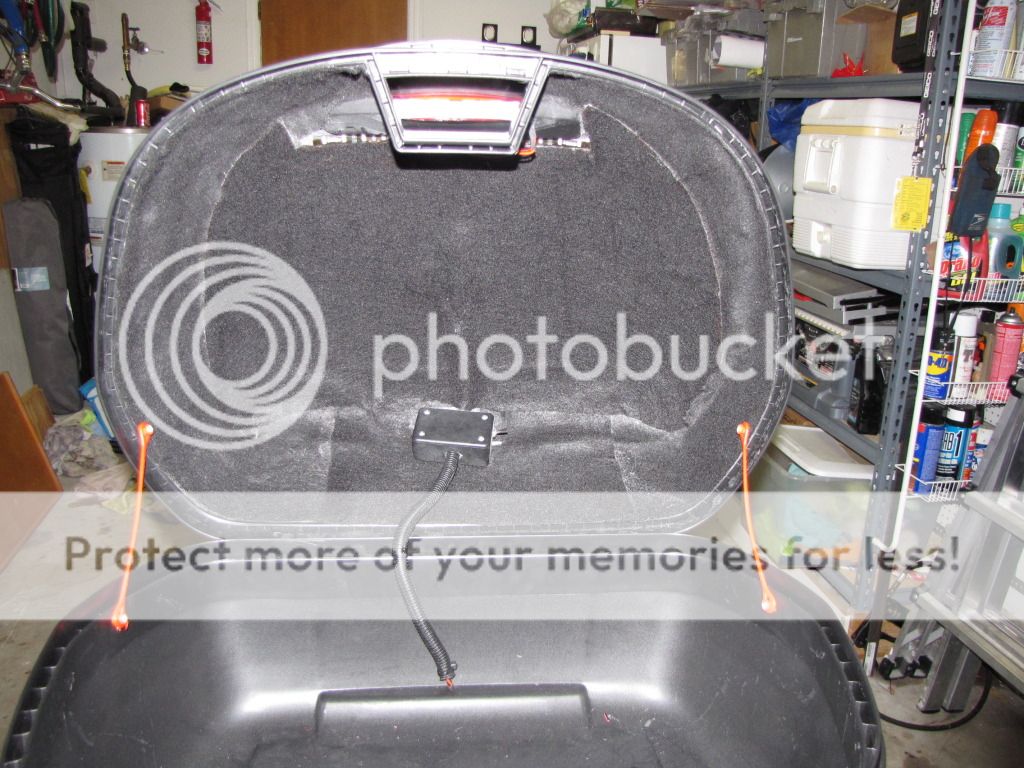

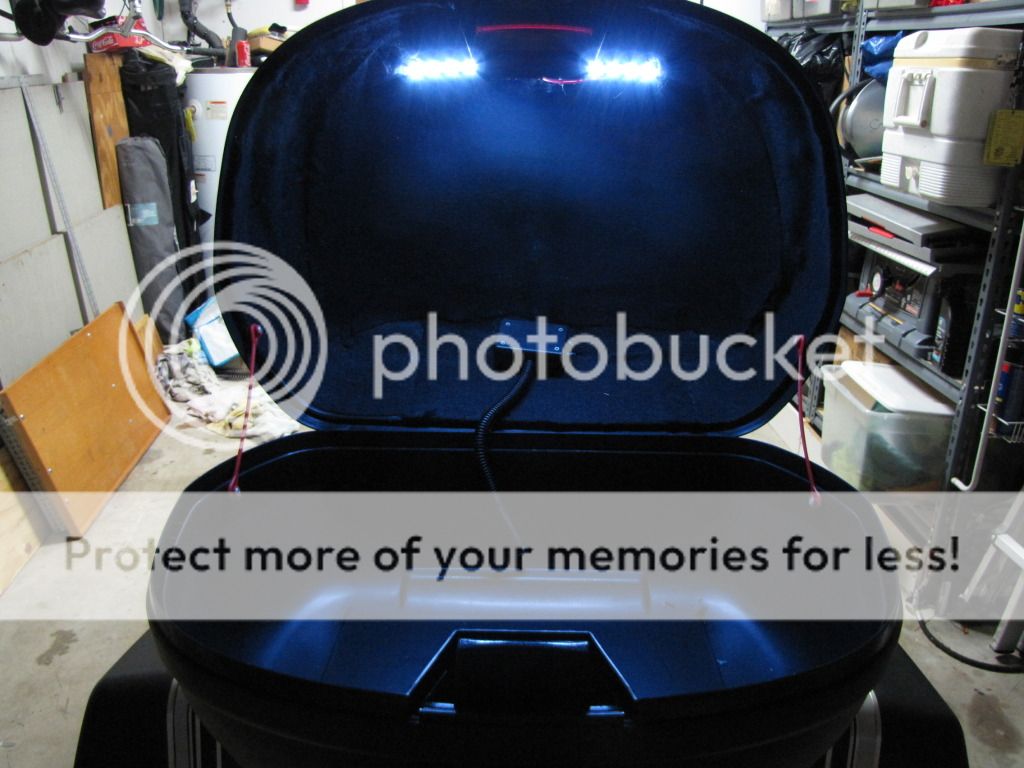

Cargo lighting:



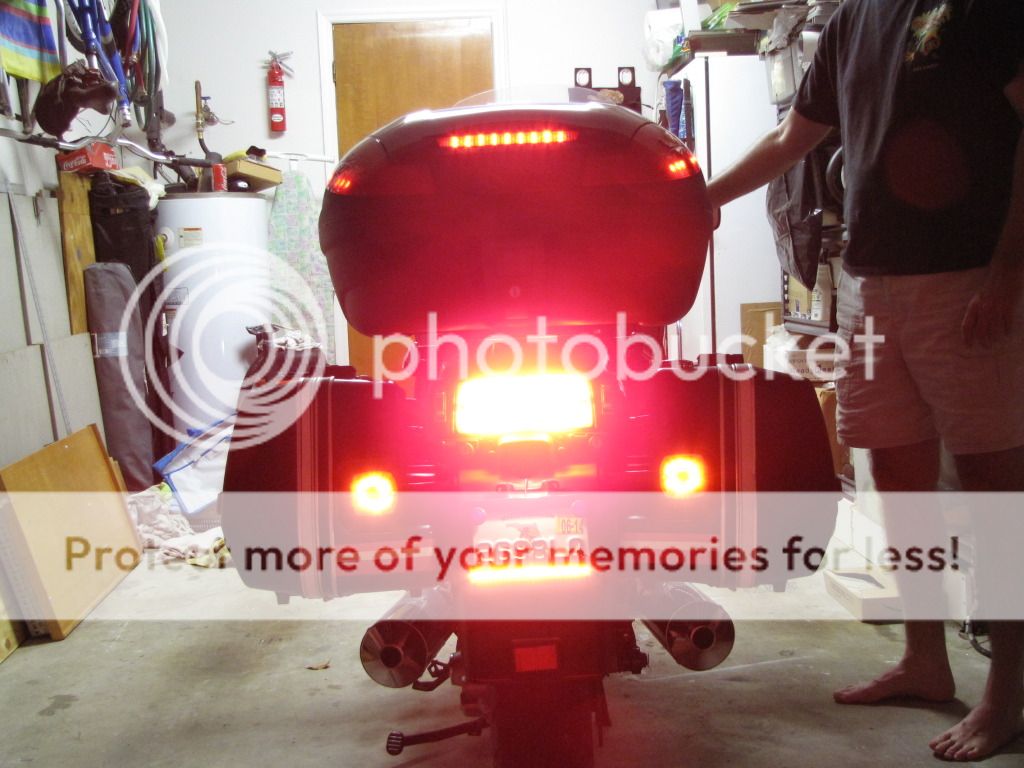

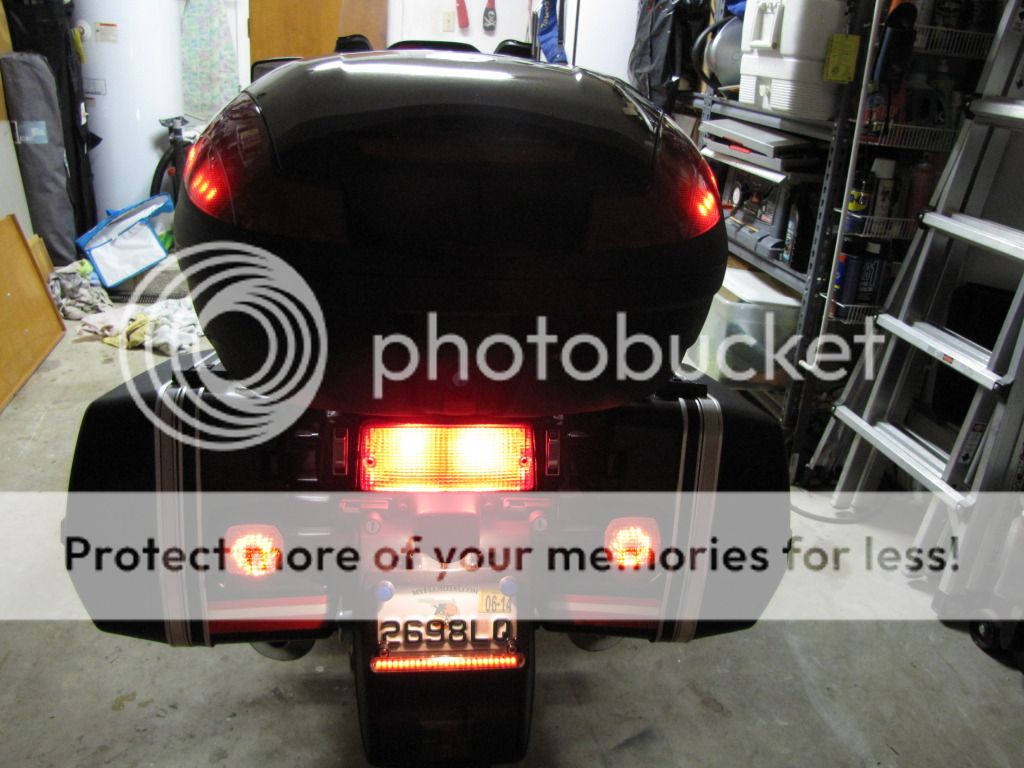

Top Case Brake Light (It's hard to get a good picture of this  :()



The top case locks in, I plug in the power, pop the seat on, and I'm ready to go.  The
finished product is 90% of what I want.  I will start working on the back rest tomorrow,
once that's on, I'll be happy this project is finished, and my Connie's range is increased
considerably.
2016 BMW S1000XR Premium in Alpine White aka 'Spooky'

SOLD: 2006 Concours aka "Connie"

FL/SE Assistant Area Director

Offline Uncle Vern

  • Road Bike
  • ***
  • Posts: 481
  • CDA# 0440
  • AREA: Southeast Area
  • COG#: 10851
  • Membership Level: Active
Re: Considering a Top Case +
« Reply #28 on: January 19, 2013, 02:14:19 am »
Wow; thanks for the details!  :-\ I want to put a topcase on Consuela after I get done with my rebuild. Is there a brand name associated with this case?
Life is a contest between engineers and God. Engineers keep making things more idiot-proof and God keeps making bigger idiots. ;D

Offline Mcfly

  • Stayin' for the people....
  • Iron Butt
  • *****
  • Posts: 3963
  • What've I done!?
  • AREA: Southeast Area
  • COG#: 9921
  • Membership Level: Asst. Area Director
Re: Considering a Top Case +
« Reply #29 on: January 19, 2013, 02:38:16 am »
Wow; thanks for the details!  :-\ I want to put a topcase on Consuela after I get done with my rebuild. Is there a brand name associated with this case?


It's a very basic trunk, made by TMS.
Here's a link to the seller's page:

http://www.t-motorsports.com/x-large-black-motorcycle-scooter-touring-trunk-top-case/

They run this case on E-Bay for 59.99 Shipped, on auction.  I won it for just that, which is $10.00
shipping.  :great:
2016 BMW S1000XR Premium in Alpine White aka 'Spooky'

SOLD: 2006 Concours aka "Connie"

FL/SE Assistant Area Director

Offline Uncle Vern

  • Road Bike
  • ***
  • Posts: 481
  • CDA# 0440
  • AREA: Southeast Area
  • COG#: 10851
  • Membership Level: Active
Re: Considering a Top Case +
« Reply #30 on: January 19, 2013, 02:43:25 am »
Thanks again, McFly! I've been thinking Givi or Shad but this is waay closer to my normal price range. Thanks for the brand name and the second link; you ROCK! :)
Life is a contest between engineers and God. Engineers keep making things more idiot-proof and God keeps making bigger idiots. ;D

Offline Mcfly

  • Stayin' for the people....
  • Iron Butt
  • *****
  • Posts: 3963
  • What've I done!?
  • AREA: Southeast Area
  • COG#: 9921
  • Membership Level: Asst. Area Director
Re: Considering a Top Case +
« Reply #31 on: January 19, 2013, 08:15:20 pm »

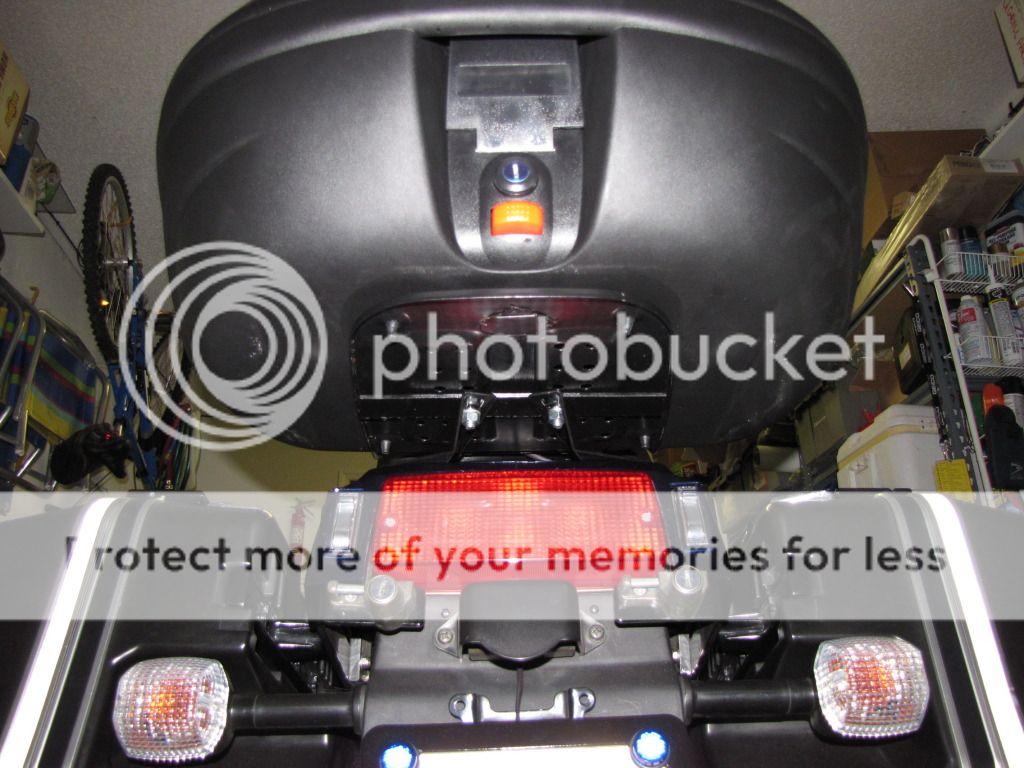

Here's some outside pics...  lots of room to move around!
