Aux light mounts
« on: April 09, 2011, 01:39:28 am »
I'd like to mount some PIAA 1100X lights under the mirrors (on a C14).  I believe Cognosticator has mounted aux lights directly to the underside of the mirrors (somebody did).  I was wondering if anyone has made or purchased brackets for this kind of mounting?  I'm thinking of a bracket that actually fits between the mirrors and the fairing with the lights hanging under them.

Offline Cap'n Bob

  • GOLD STAR
  • *******
  • Posts: 10955
  • AREA: Northeast Area
  • COG#: 7134
  • Membership Level: Active
Re: Aux light mounts
« Reply #1 on: April 09, 2011, 09:59:34 am »
Larry Buck makes them for both the C10 and the C14 (So they are on the same page on his website) under the driving lights section. Here's a link:

http://www.bucksporttouring.com/lights.html

Offline BJ_CT

  • Street Cruiser
  • ****
  • Posts: 745
  • AREA: Northeast Area
  • COG#: 9058
  • Membership Level: Active
Re: Aux light mounts
« Reply #2 on: April 09, 2011, 06:16:12 pm »
Tell your wife you are too handy to have around.  Thanks.

Offline Highett

  • Mini Bike
  • **
  • Posts: 108
  • Australia
  • AREA: South Central Area
  • COG#: 9937
  • Membership Level: Active
Re: Aux light mounts
« Reply #3 on: December 06, 2011, 07:13:24 am »
I have just made a set of brackets and fitted Hella FF50 Driving lights under the mirror on My GTR1400, I did not use the screws that hold the mirrors in place  but did make use of the mount that the mirrors fit on.







Cheers




Offline COGnosticator

  • SE AAD
  • Sport Tourer
  • *****
  • Posts: 2221
  • COG 4478
  • AREA: Southeast Area
  • COG#: 4478
  • Membership Level: Asst. Area Director
Re: Aux light mounts
« Reply #4 on: December 06, 2011, 08:05:35 am »
I'd like to mount some PIAA 1100X lights under the mirrors (on a C14).  I believe Cognosticator has mounted aux lights directly to the underside of the mirrors (somebody did).  I was wondering if anyone has made or purchased brackets for this kind of mounting?  I'm thinking of a bracket that actually fits between the mirrors and the fairing with the lights hanging under them.

Wasn't me, sorry, but glad somebody could help
Jerry Holland  COG  4478
2014 FJR1300ES (1986, 2000, 2001 C10 and 2009 and 2013 C14)
Man, you were hauling a** the other day when I passed you

Offline Superdave

  • Bicycle
  • *
  • Posts: 98
  • Upgraded from a 2000 to a 2011. No regrets.
  • AREA: Northwest Area
  • COG#: 10511
  • Membership Level: Active
Re: Aux light mounts
« Reply #5 on: December 16, 2011, 01:57:43 am »
How are you powering the aux lights?  I have been looking at the electrical system in my maintenance manual, and I am not sure there is enough extra amp capacity left in the high or low beam circuits.

On the ZG1000 I had before, there were some PIA lights added to the high beam circuit right through the factory switch.  I would like to do the same on my 2011 Concours 14.

2011 Silver C14
1980 Goldwing Standard
1981 Goldwing Interstate
Looking for an older bike to "cafe"

Offline BJ_CT

  • Street Cruiser
  • ****
  • Posts: 745
  • AREA: Northeast Area
  • COG#: 9058
  • Membership Level: Active
Re: Aux light mounts
« Reply #6 on: December 16, 2011, 03:22:49 am »
The Krysta lights are wired to the battery via a Fuzeblock but could be routed back to the battery.  I've fused them at 10 amps but I believe they draw about 6 amps.  By the way, the 'reduce power when on low beam' wire is connected to the white with red stripe wire that goes into the high beam relay.  By the way, still really pleased with the installation. :motonoises:
« Last Edit: December 16, 2011, 03:25:17 am by BJ_CT »

Offline fartymarty

  • Crotch Rocket
  • ****
  • Posts: 1010
  • AREA: South Central Area
  • COG#: 9712
  • Membership Level: Asst. Area Director
Re: Aux light mounts
« Reply #7 on: December 17, 2011, 03:58:40 am »
How are you powering the aux lights?  I have been looking at the electrical system in my maintenance manual, and I am not sure there is enough extra amp capacity left in the high or low beam circuits.

I would run a separate wire from an auxiliary fuze-block or the battery through a standard automotive relay and then to the lights. Have the relay triggered on by either a manual switch or by the high beam circuit. The relay trigger current will be negligible to the high beam circuit if you decide to use that as the on trigger source.
My Denali lights are hooked up through a relay and a manual switch.

Offline lddave

  • Mini Bike
  • **
  • Posts: 105
  • AREA: South Central Area
  • COG#: 9855
  • Membership Level: Active
Re: Aux light mounts
« Reply #8 on: December 26, 2011, 01:48:20 pm »
Nice brackets Highett.
Dave Bankhead
IBA 178

Offline Highett

  • Mini Bike
  • **
  • Posts: 108
  • Australia
  • AREA: South Central Area
  • COG#: 9937
  • Membership Level: Active
Re: Aux light mounts
« Reply #9 on: December 30, 2011, 08:37:15 am »
Here's what I did:

    1. Two separate 30 amp fused 12 volt pared cables, one to the front and one to the back.
    2. Installed the fuse block in the front, Could not fit a fuse block under the seat (Single 12 volt power source instead at the rear)
    3. Wired in the driving lights (with a relay tapped into the high beam and the switch in the dash) Drawing power from the fuse block to the relay with the earth back to the fuse block given that it it is wired direct to the battery terminals.
    4. Changed the globes in the FF50's to Philips X-treme power globes.
    5. Changed the GTR's standard globes to Philips X-treme power globes.

They are an improvement over the standard globes.

Each wire for every connection and join was soldered, wires going into screwed fittings were soldered before fitting.

I have to say right now, The Maintenance DVDs from Angle Fire Videos are worth every cent.

The Maintenance DVD showed me how to get the Smart Rivets out without removing the wind screen, and the big one how to remove the fuel tank. I had no idea I would need a special tool (hunk of wood) to get to the fuel line.

This was very different from the bikes I remembered (20 years plus ago),  However I had a great time working on the GTR.

So here's the photos,

Removing the tank.

Just as the DVD said the rubber blocks fell off, stuck them back on with 3M doubled side tape again suggested by the DVD.



The Wood:



The fuel Line:



The Battery:

Now isn't it cramped in there, I managed to get two separate 50 amp pared cables fused (30 amp) close to the positive terminal out of there, If I ever need to get the battery out I will have to removed the fuel tank and disconnect the power cables from the 35 amp joining block through the access panel.
Seems like a lot of rooting around, but now I know how to remove the tank with out pulling off the plastic, it does not take long and its pretty easy.



The power cables (Front & Rear) Separate with own 30amp fuse and shared earth.

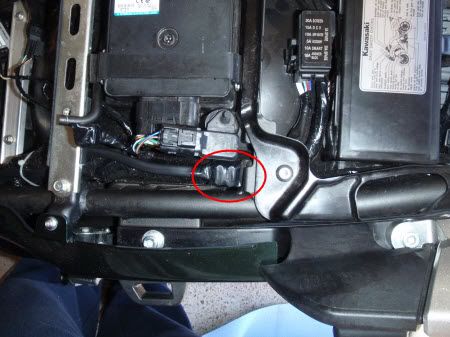

The Rear Cable:

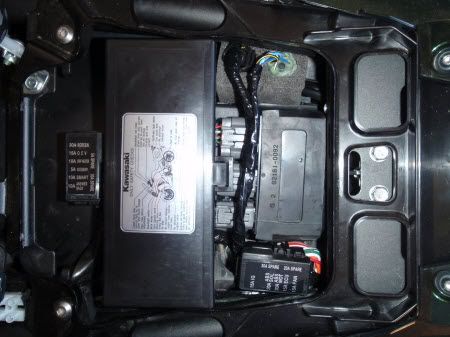

Area under the seat:

I tried in so many places to fit that second FZ-1 fuse block under there (including removing the tool box) and was not happy with how it sat in any place.
The rear was a secondary goal for me as I do not have any Farkles at the back yet, but now I do have a direct 12 volt fused power source sitting there for when I do, Mean while I will keep looking for something that does fit.



The front cable:

Photos are self explanatory here I think.



The front bracket: (Attached to the inside right mirror mount)



The fuse block and FF50 relay:

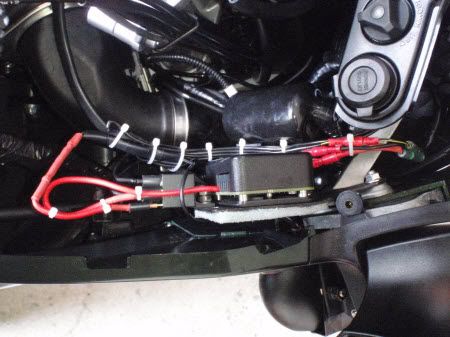

The wiring:



Side cover fitted:



Job Done:



Went out the other night for a test run, very happy - Huge improvement with the Philips X-treme  Globes over the standard ones and the FF-50's do the trick nicely.
